About this item
- Celestron NeXYZ Universal 3-Axis Smartphone Adapter
From the manufacturer
NexYZ 3-Axis Universal Smartphone Adapter
Celestron has perfected the smartphone adapter with NexYZ. This universal digiscoping adapter helps you capture stunning images through your favorite optic in seconds. The secret is the unique Z-axis adjustment.
FEATURES AND BENEFITS
|
|
|
|
|---|---|---|

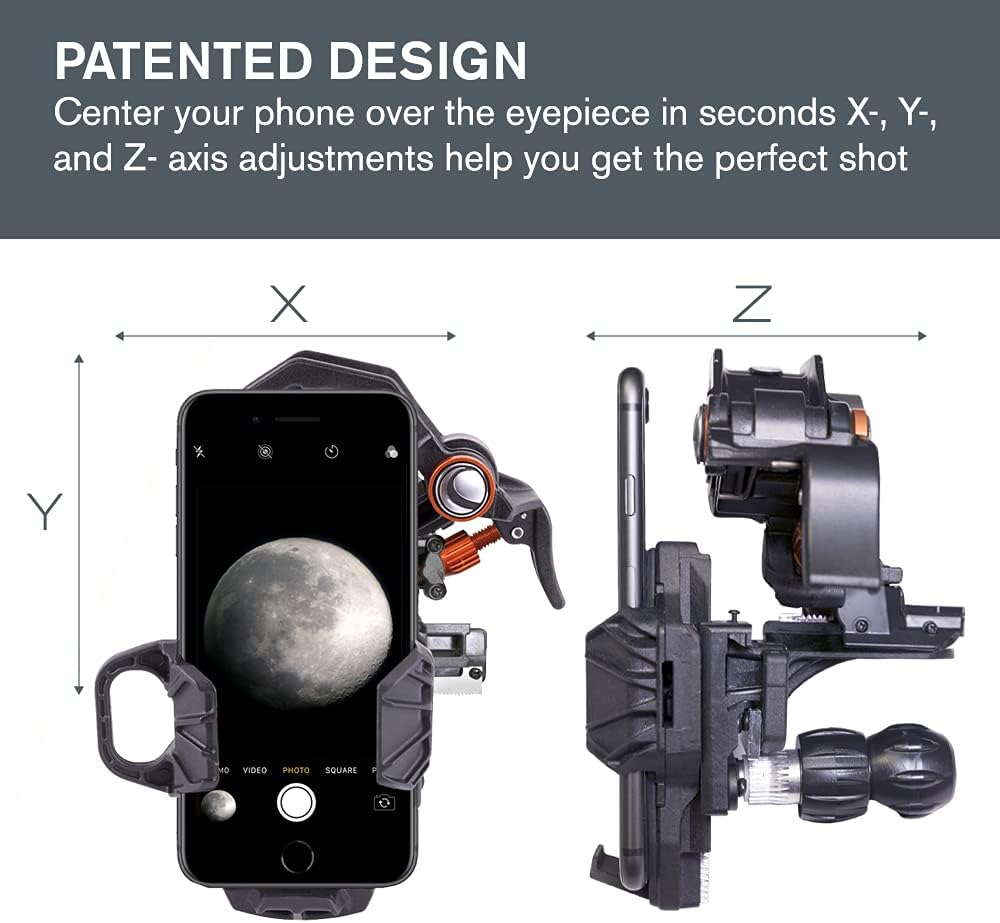

Easy as X-Y-ZNexYZ’s patent pending design gives you the power to align your phone precisely with the eyepiece using the X- and Y-axis adjustment knobs, and then use the Z-axis knob to move up or down for the perfect shot. |
Universal Smartphone AdapterFits any eyepiece from 35mm to 60mm in diameter including telescopes (with most 1.25” or 2” eyepieces), spotting scopes, binoculars, monoculars, and microscopes. |
Compatible Mobile DevicesWorks with all the latest devices from Apple, Samsung, and Google—usually with the case on. |
|
|
|
|
|
|---|---|---|---|
Great for GroupsNexYZ’s simple spring-loaded clamp makes it easy to switch out one device for another in seconds. It’s the ideal solution for star parties, group bird walks, students, and more. |
Durable ConstructionNexYZ stands up to rigorous field use thanks to its robust metal frame and polymer body. |
Change the AngleGo from portrait to landscape mode with a simple turn of the adapter’s clamp and a quick realignment. |

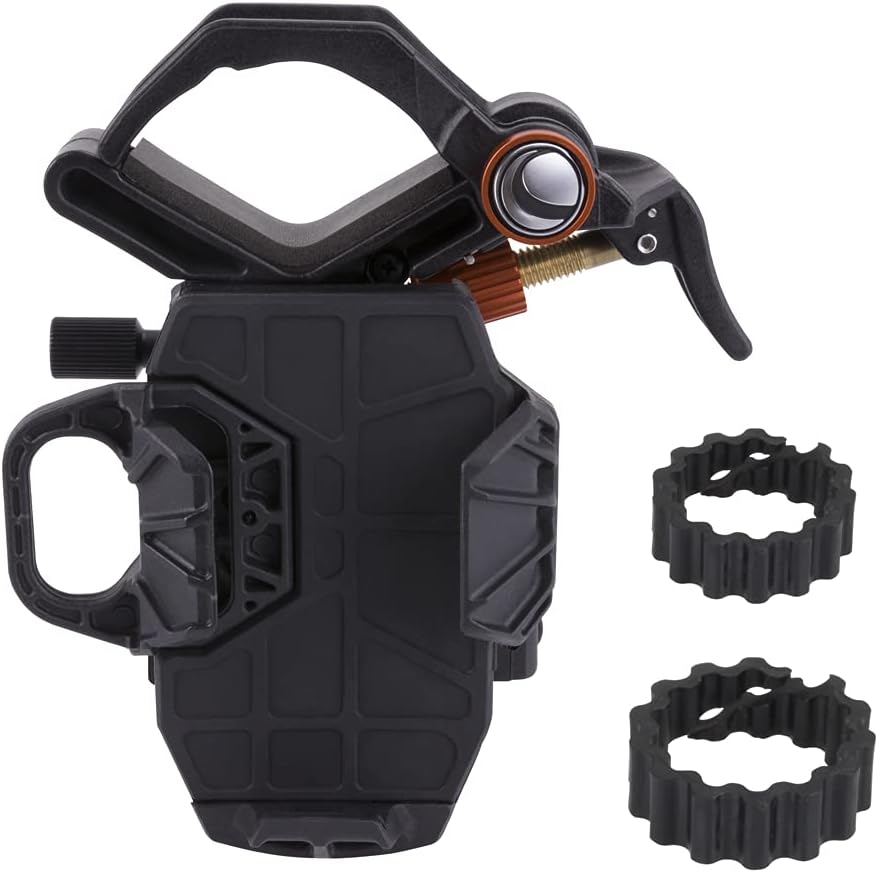

Microscope Eyepiece AdaptersTurn your microscope into a digiscoping machine. The NexYZ comes with two eyepiece adapters to provide a firm grip against your microscope’s eyepiece. |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| NexYZ Smartphone Adapter | NexYZ DX Kit Smartphone Adapter | NexGO Smartphone Adapter | NexGO DX Kit Smartphone Adapter | Smartphone Adapter | Smartphone Adapter DX Kit | |
| Compatible Optics: | Telescope, Binocular, Spotting Scope, Monocular and Microscope | Telescope, Binocular, Spotting Scope, Monocular and Microscope | Telescope, Binocular, Spotting Scope, Monocular and Microscope | Telescope, Binocular, Spotting Scope, Monocular and Microscope | Telescope, Binocular, Spotting Scope, Monocular and Microscope | Telescope, Binocular, Spotting Scope, Monocular and Microscope |
| Eyepiece Clamp Style: | Spring load with lock down knob | Spring load with lock down knob | Traditional clamp with adjustment knob | Traditional clamp with adjustment knob | Thumb bolt hex shape | Thumb bolt hex shape |
| Eyepiece Clamp Range: | 35mm – 60mm (1.37″ – 2.36″) | 35mm – 60mm (1.37″ – 2.36″) | 25.4mm – 44.45mm (1.0″ – 1.75″) | 25.4mm – 44.45mm (1.0″ – 1.75″) | 29mm – 45mm (1.14″ – 1.77″) | 29mm – 45mm (1.14″ – 1.77″) |
| Phone Clamp Style: | Easy load with internal spring | Easy load with internal spring | Easy load with internal spring | Easy load with internal spring | Thumb bolt adjusting | Thumb bolt adjusting |
| Phone Clamp Range: | 65mm – 90mm (2.55″ – 3.54″) | 65mm – 90mm (2.55″ – 3.54″) | 58mm – 103mm (2.28″ – 4.06″) | 58mm – 103mm (2.28″ – 4.06″) | 56mm – 95mm (2.20” – 3.75”) | 56mm – 95mm (2.20” – 3.75”) |
| Fine Adjustment Style: | X, Y, Z Motion | X, Y, Z Motion | X, Y Motion | X, Y Motion | Manual | Manual |
| Materials: | Cast metal, fiber reinforced plastic | Cast metal, fiber reinforced plastic | Cast metal, reinforced plastic, aluminum | Cast metal, reinforced plastic, aluminum | Cast metal | Cast metal |
| Accessories: | 2 adapters for microscope eyepieces | 2 adapters for microscope eyepieces, Bluetooth remote, CR-2032 battery | Smartphone booster stand for smaller phones | Smartphone booster stand for smaller phones, Bluetooth remote, CR-2032 battery | None | Bluetooth remote, CR-2032 battery |
| Dimensions: | 165.1mm x 139.7mm x 107.95mm (6.50″ x 5.50″ x 4.25″) | 165.1mm x 139.7mm x 107.95mm (6.50″ x 5.50″ x 4.25″) | OPEN: 196.5mm x 101.6mm x 76.2mm (7.75″ x 4.0″ x 3.0″) | CLOSED: 146mm x 120.6mm x 76.2mm (15.75″ x 4.75″ x 3.0″) | OPEN: 196.5mm x 101.6mm x 76.2mm (7.75″ x 4.0″ x 3.0″) | CLOSED: 146mm x 120.6mm x 76.2mm (15.75″ x 4.75″ x 3.0″) | 177.8mm x 101.6mm x 38.1mm (7″ x 4″ x 1.5″) | 177.8mm x 101.6mm x 38.1mm (7″ x 4″ x 1.5″) |
| Weight: | 10 oz ( 283 g) | 10 oz ( 283 g) | 12.8 oz (363 g) | 12.8 oz (363 g) | 7 oz (170 g) | 7 oz (170 g) |
