About this item
- Stepper motor with a standard interface, when used directly plug gable,very easy and convenient.
- A, B, C, D four-phase LED indicates the status of the stepper motor work.
- 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board, with convenient use, direct docking.
- All the stepper motors compatible with arduino 1280 DSP ARM PIC AVR STM32 Raspberry Pi.

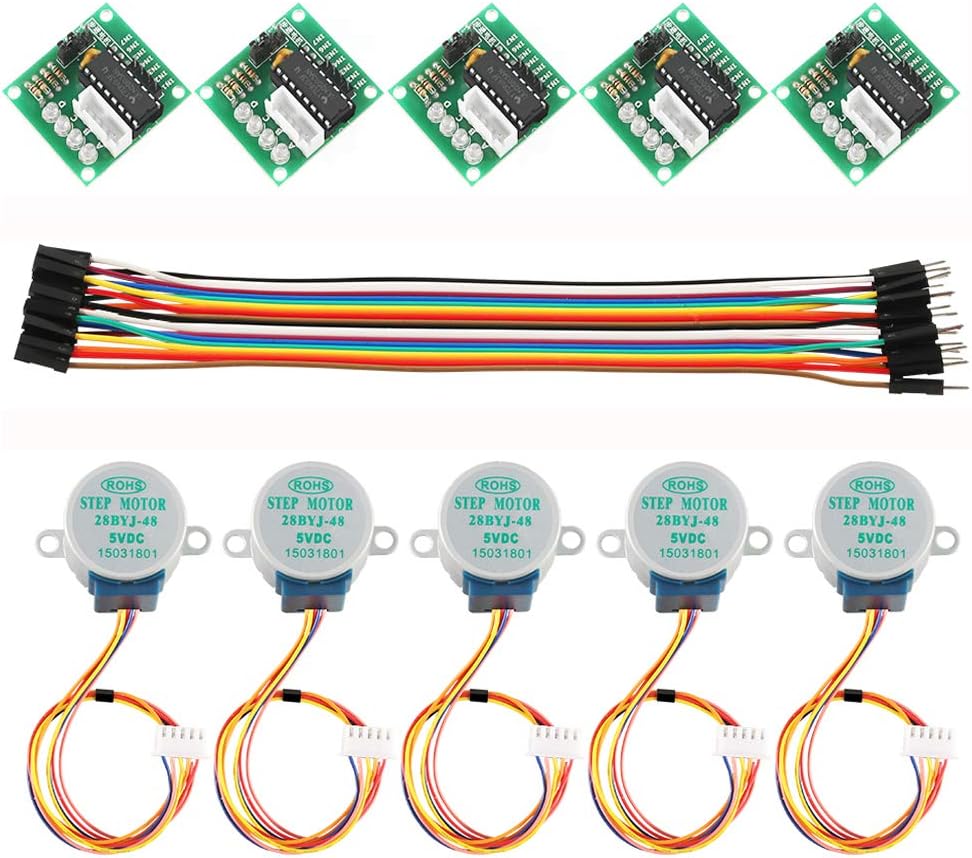

- Packing include : 5 pcs uln2003 stepper motor + 5 pcs driver board + 20 pcs jumper wire cable.
Product Description
Feature:
A, B, C, D four-phase LED indicates the status of the stepper motor work.
Stepper motor with a standard interface, when used directly plug gable.
Rated Voltage: DC5V 4-phase
Insulation Resistance: >10MΩ (500V)
Dielectric Strength: 600V AC / 1mA / 1s- Step angle: 5.625 x 1/64
DC Resistance: 200Ω±7% (25C)
Reduction ratio: 1/64
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Package including:
5 X Uln2003 Stepper Motor
5 X Driver Board
20 X female to male cable
